Gradient Descent

Gradient

Derivatives

• We can also interpret the slope as:

  • If I nudge x, how does y change?

Pretend that multivariable funciton is univariate, then take derivative as normal. This is a partial derivative.

• The gradient extends the derivative to multiple variables.
  • Vector-valued function (always outputs a vector).

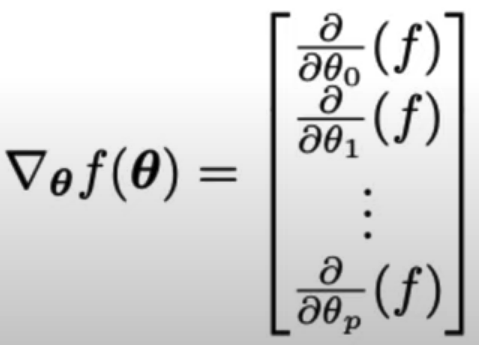

  • The gradient of f(θ) w.r.t. θ is a vector. Each element is the partial derivative for component of θ.

---

Using the Gradient

Gradient w.r.t. θ encodes where θ should "move".

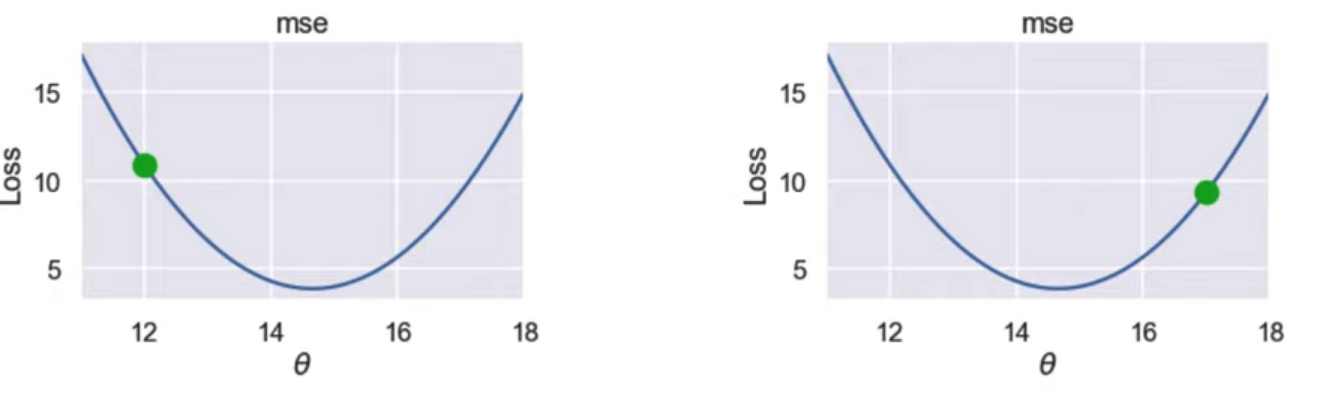

• Left: θ should move in the positive direction
• Right: θ should move in negative direction

• Left plot: gradient - , want θ +
• Right plt: graident +, want θ -
• Idea: Move θ in negative direction of gradient.

Gradient descent algorithm: nudge θ in negative gradient direction until θ converges.

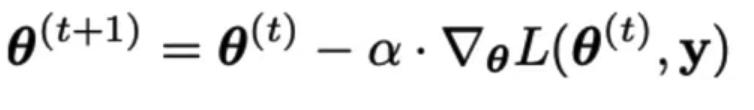

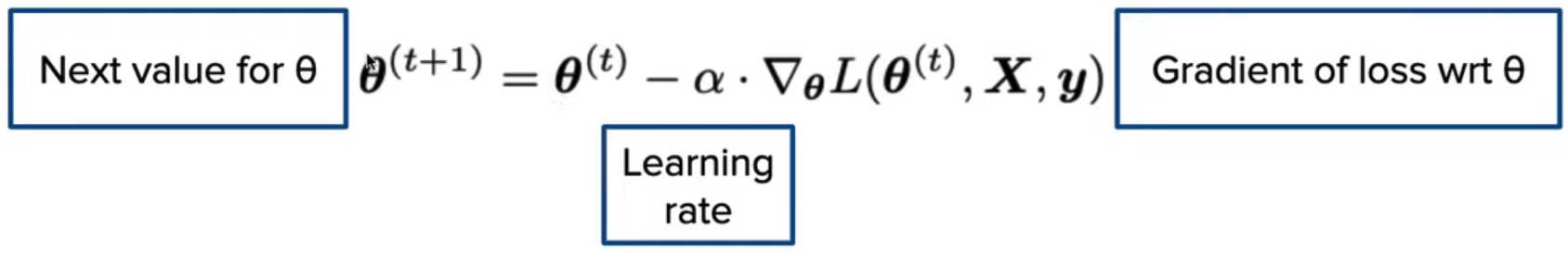

Batch gradient descent update rule:

θ: Model weights

L: loss function

α: Learning rate, usually samll constant

y: Ture values from training data



Update model weights using update rule:

---

 Gradient Descent for MSE

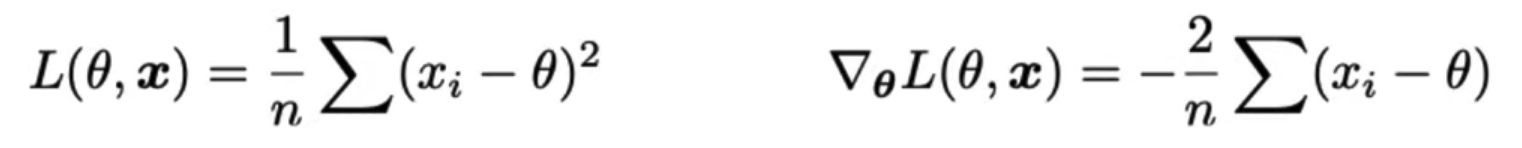

• For constant model using MSE loss, we have:

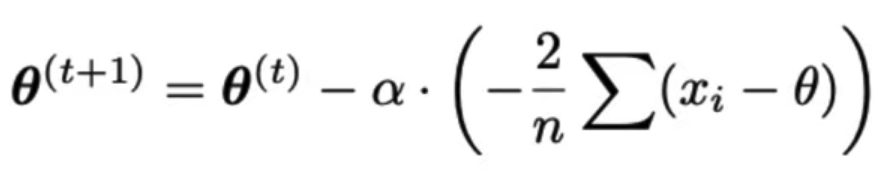

So the update rule is:

---

The Learning Rate

• α called the learning rate of gradient descent.
  • Higher values can converge faster since θ changes more each iteration.
  • But α too high might cause GD to never converge!
  • α too low makes GD take many iterations to converge.

---

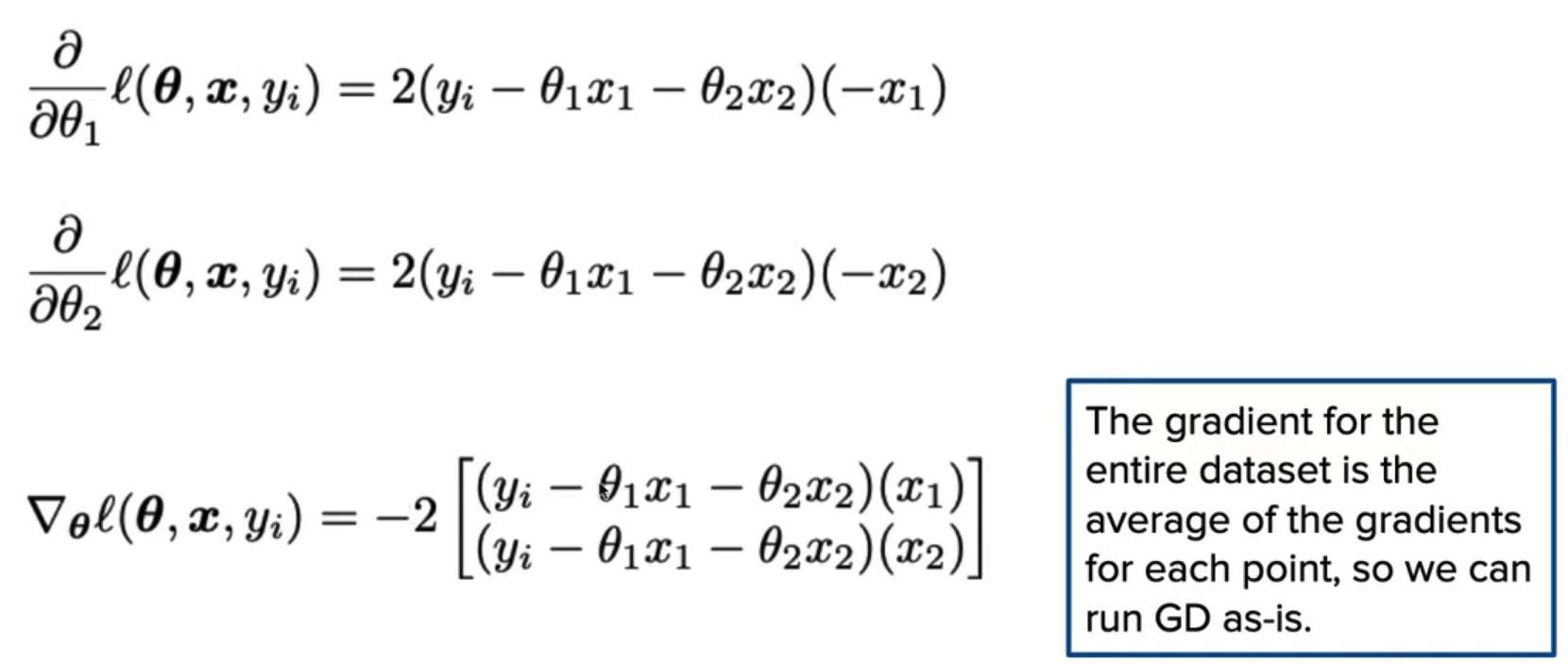

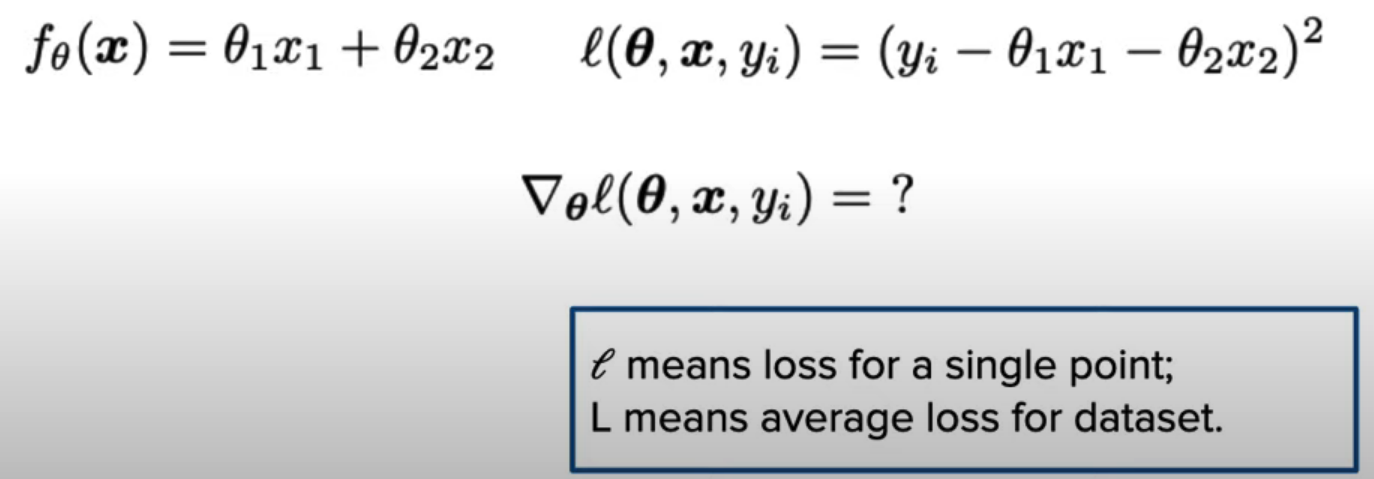

Question:

Answer:

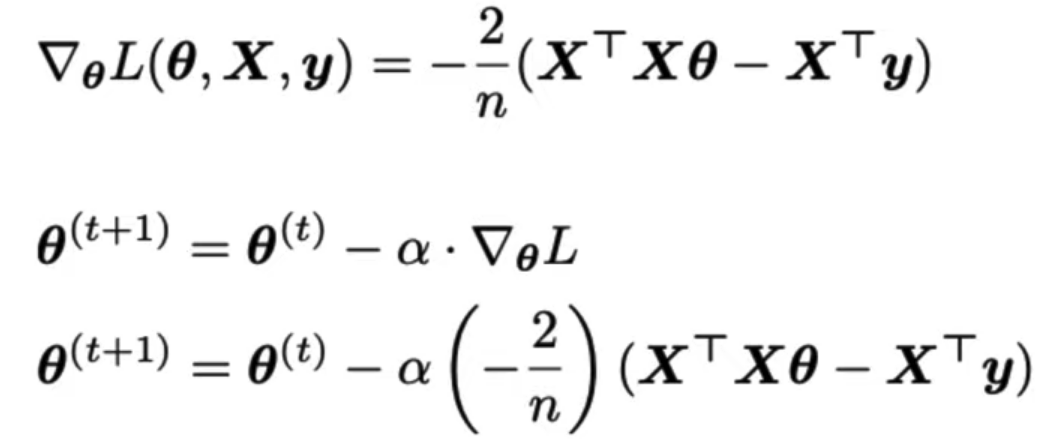

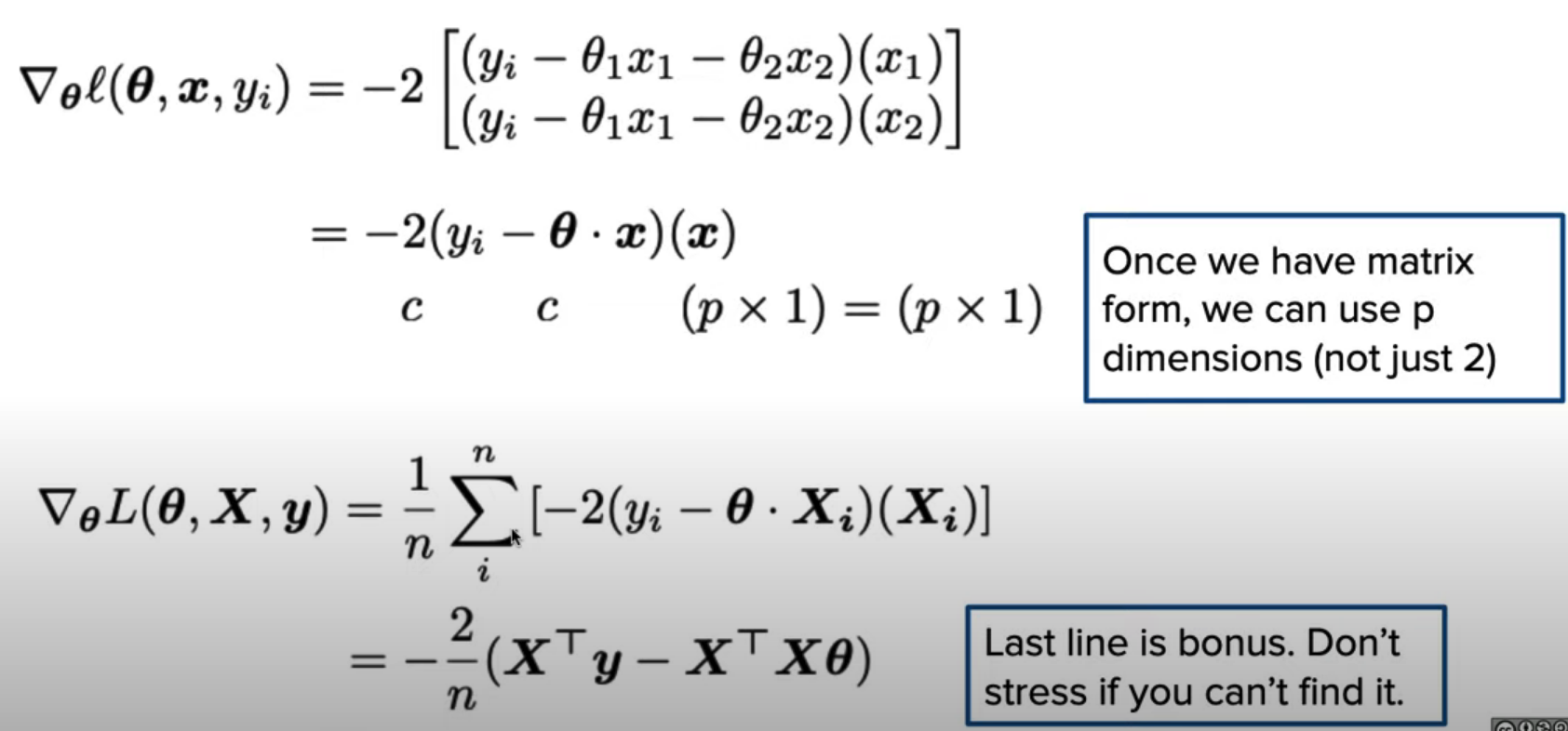

In Matrix Form:

Update Rule:

---

Stochastic Gradient Descent (SGD)

• Can perform update using one data point instead of all the data points.

SGD usually converges faster than BGD in practice!

---

SGD Algorighm

1. Initialize model weights to zero
2. Shuffle input data.
3. For each point in the shuffled input data, perform update:
4. Repeat steps 2 and 3 until convergence.

Each individual update is called an iteration.

Each full pass through the data is called an epoch.



Example:

• BGD update rule for constant model, MSE loss:

• SGD update rule for constant model, MSE loss:

Why does SGD perform well?

Intuition: SGD "does more" with each data point.

• E.g. Sample of size 1 million
• BGD requires ≥1 million calculations for one update
• SGD will have updated weights 1 million times!

• However:
  • BGD will always move towards optima
  • SGD will sometimes move away because it only considers one point at a time.
  • SGD still does generally better in spite of this.

---

Convexity

For a convex funtion f, any local mimnimum is also a global minimum.

• If loss function convex, gradient descent will always find the globally optimal minimizer.

Formally, f is convex if:

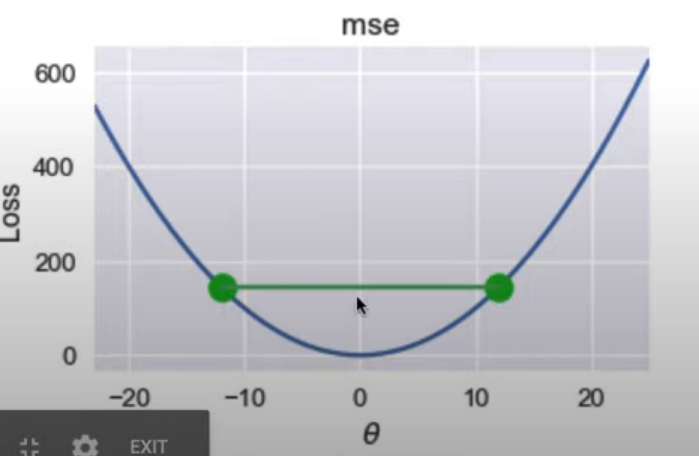

• RTA: If I draw a line between two points on curve, all values on curve need to be on or below line.
• MSE loss in convex:

---

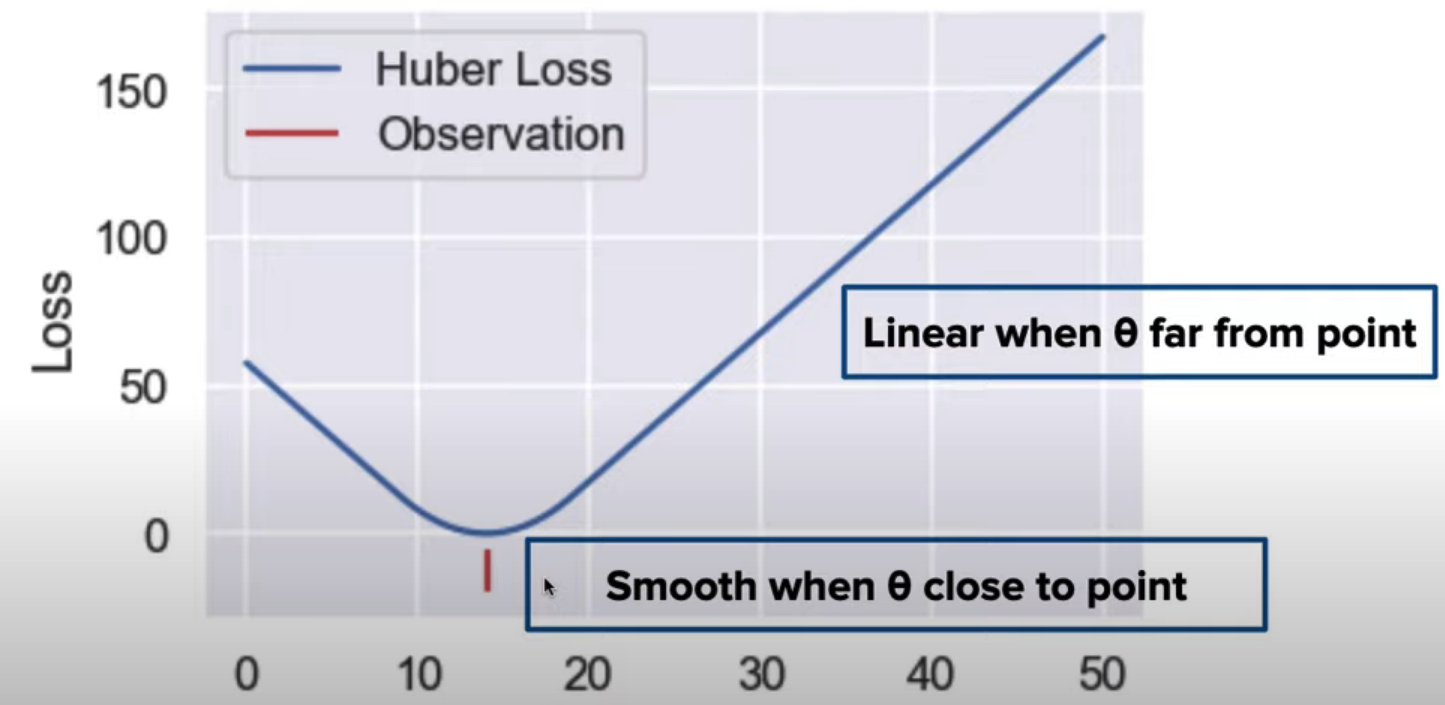

Huber Loss

• What if we want the outlier-robust properties of MAE?

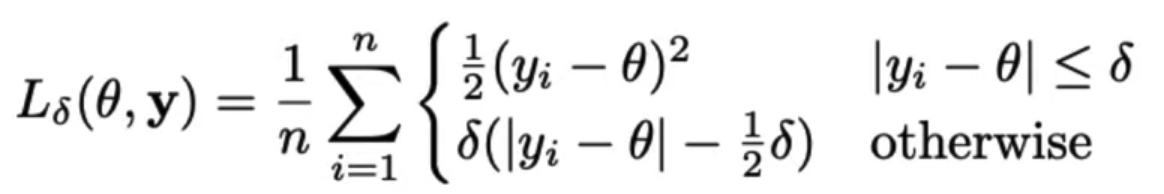

• Use Huber Loss:

• Behaves like MAE loss when points far from θ
  • But like MSE loss when points close to θ

∂ is a parameter that determines where Huber loss transitions from MSE to MAE.

No analytic solution (unlike MSE and MAE)

But differentiable everywhere, so we can use GD!

Try taking the derivative and running GD for practice.
